Lab Furnace Equipment Guide Covering Uses, Types, and Specifications

From ceramics and metals to polymers and specialty composites, controlled high-temperature processing is critical for producing consistent, reliable results.

Recent advances in vacuum furnace technology—such as TM vacuum furnaces, large vacuum furnaces, laboratory vacuum furnaces, vertical vacuum furnaces, and solar vacuum furnaces—have enabled precise, contamination-free heating for sensitive materials. Applications like aluminum furnace brazing, high-purity metal treatment, and industrial-scale processes have further expanded the role of vacuum and lab furnaces in modern manufacturing.

Benefits of Lab and Vacuum Furnaces

Lab and vacuum furnaces provide several critical advantages:

1. Precise Temperature Control

Lab furnaces, including laboratory vacuum furnaces, allow highly accurate control over temperature ramps and holding times, which is essential for repeatable experiments and material treatments.

2. Contamination-Free Processing

Vacuum furnaces reduce oxidation and contamination by operating in controlled or near-zero pressure environments, making them ideal for sensitive metals and alloys.

3. High-Temperature Capability

Modern furnaces can reach temperatures up to 2000°C, enabling processes such as aluminum furnace brazing, sintering, and metal alloy processing.

4. Versatile Applications

• Sample annealing

• Material testing

• Metal brazing

• Ceramic firing

• Solar material experiments (solar vacuum furnace)

5. Enhanced Safety and Efficiency

Well-designed vacuum and lab furnaces minimize heat leakage, reduce energy consumption, and provide integrated safety features such as interlocks and emergency cutoffs.

Limitations and Considerations

While beneficial, lab and vacuum furnaces come with certain limitations:

1. High Initial Cost

Vacuum and industrial furnaces like large vacuum furnaces involve significant upfront investment.

2. Maintenance Requirements

Heating elements, insulation, and vacuum seals require regular inspection and replacement.

3. Space and Infrastructure Needs

Large vacuum furnaces require adequate floor space, electrical capacity, and sometimes specialized exhaust or cooling systems.

4. Training

Operators must understand temperature control, pressure monitoring, and safety procedures.

Types and Categories of Lab Furnaces

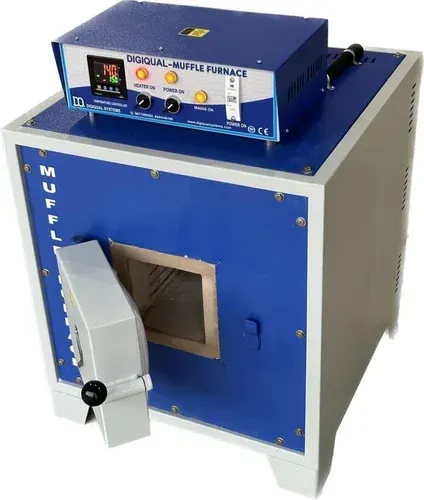

1. Muffle or Box Furnaces

• Use: General heating, annealing, drying samples

• Advantages: Uniform temperature, user-friendly

• Limitations: Limited to air-atmosphere applications

2. Tube Furnaces

• Use: Gas-controlled reactions, sintering, thermal decomposition

• Advantages: Controlled atmospheres, temperature gradients

• Limitations: Sample size limited by tube diameter

3. Crucible Furnaces

• Use: Melting metals and alloys

• Advantages: High melting capability

• Limitations: Not suitable for reactive materials without a vacuum or inert atmosphere

4. Vacuum Furnaces

Vacuum furnaces are specialized equipment for high-purity and high-temperature processes.

5. Specialty Furnaces

• Aluminum Furnace Brazing: Combines controlled heat and vacuum to join aluminum components.

• Solar Vacuum Furnace: Uses concentrated solar energy for material testing and high-temperature experiments.

Latest Trends and Innovations

1. Digital Temperature Control

Advanced controllers enable programmable heating ramps, cooling profiles, and remote monitoring.

2. Improved Vacuum Technology

Enhanced vacuum pumps and chamber sealing improve reliability and reduce contamination risks.

3. Modular and Vertical Designs

Vertical vacuum furnaces optimize floor space and allow efficient loading/unloading.

4. Energy-Efficient Systems

New insulation materials and optimized chamber designs reduce energy consumption during high-temperature cycles.

5. Integrated Monitoring

Sensors for pressure, temperature, and gas flow allow automated adjustments for consistent results.

6. Specialized Application Development

• Aluminum brazing in vacuum: Controlled atmosphere for high-quality joints

• Solar material testing: Simulates real-world solar thermal conditions

Key Features to Consider

When selecting a lab or vacuum furnace, consider:

1. Maximum Temperature Range: Ensure suitability for intended applications.

2. Chamber Size: Accommodates the largest samples or components.

3. Atmosphere Control: Vacuum, inert gas, or controlled airflow as required.

4. Heating Element Material: Kanthal, silicon carbide, or molybdenum disilicide depending on temperature needs.

5. Energy Efficiency: Minimize operational costs with proper insulation and optimized cycle times.

6. Safety Features: Door interlocks, emergency cutoffs, and over-temperature protection.

7. Control System: Programmable logic controllers (PLC), digital interfaces, and data logging.

Comparison Table: Lab and Vacuum Furnace Types

Top Companies and Solutions (Public Reference)

• Carbolite Gero – https://www.carbolite-gero.com
  Wide range of lab and vacuum furnaces, including vertical and horizontal systems.

• Lenton Furnaces – https://www.lentonfurnaces.com
  Compact and industrial vacuum furnace solutions.

• Thermo Fisher Scientific – https://www.thermofisher.com
  Laboratory vacuum furnaces and high-precision thermal equipment.

• Nabertherm – https://www.nabertherm.com
  High-temperature furnaces, including box, tube, and vacuum models.

These references are informational for comparison purposes.

How to Choose the Right Furnace

1. Determine Application Needs: Research, production, brazing, or solar simulation.

2. Match Temperature and Chamber Size: Consider max sample size and heating requirements.

3. Select Appropriate Atmosphere: Vacuum, inert gas, or air.

4. Evaluate Loading Style: Horizontal or vertical loading based on workflow.

5. Consider Future Expansion: Modular designs may accommodate larger samples or higher throughput.

6. Assess Energy Efficiency and Maintenance: Review insulation quality, heating element longevity, and service requirements.

Checklist for Selecting a Furnace

• Maximum temperature requirement

• Chamber dimensions and volume

• Atmosphere control capabilities

• Heating element type and longevity

• Energy consumption and insulation

• Safety and compliance features

• Data logging and control interface

• Maintenance and service accessibility

• Sample loading/unloading style

• Budget and long-term operational costs

Tips for Best Use and Maintenance

• Regular Calibration: Ensures accurate temperature readings.

• Clean Chambers: Remove residues to avoid contamination.

• Inspect Heating Elements: Check for wear, oxidation, or damage.

• Avoid Rapid Thermal Cycling: Reduces stress on insulation and elements.

• Monitor Vacuum Seals: Maintain integrity to avoid leaks.

• Use Recommended Containers: Crucibles or trays suitable for high temperatures.

FAQs About Lab and Vacuum Furnaces

Q1: What is the difference between a lab vacuum furnace and a regular muffle furnace?
A: Lab vacuum furnaces operate under vacuum to prevent oxidation and contamination, while muffle furnaces use air at atmospheric pressure.

Q2: Can aluminum be brazed in a vacuum furnace?
A: Yes, controlled vacuum conditions allow precise aluminum brazing with high-quality joints.

Q3: What industries use vertical vacuum furnaces?
A: Aerospace, automotive, and electronics industries use vertical vacuum furnaces for metal joining and alloy processing.

Q4: How often should vacuum furnaces be serviced?
A: Periodic maintenance every 6–12 months is recommended, depending on usage and temperature cycles.

Q5: What is a solar vacuum furnace used for?
A: It simulates concentrated solar energy conditions for material testing and high-temperature research applications.

Conclusion: Practical Takeaways

Lab and vacuum furnaces are indispensable tools in modern research, industrial production, and high-temperature material processing. Selecting the right furnace depends on understanding application needs, temperature ranges, chamber size, atmosphere control, and operational considerations. Incorporating innovations such as vertical vacuum designs, TM vacuum furnaces, solar vacuum setups, and aluminum brazing solutions allows laboratories and industries to perform precise, contamination-free processes efficiently.

Proper operation, regular maintenance, and careful selection ensure reliable performance, energy efficiency, and extended equipment lifespan. By following structured guidelines and considering the specific requirements of your work, lab and vacuum furnaces can provide consistent, reproducible results across a wide range of scientific and industrial applications.
